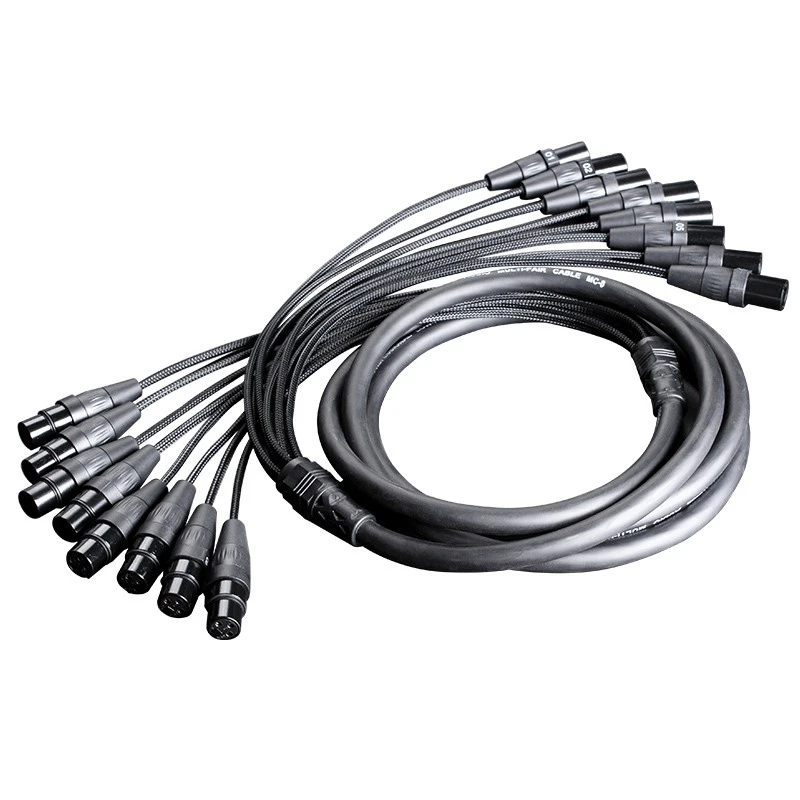

SNA20 OEM factory professional 4/6/8/12/16 channel male to female multicore snake cable

Description

● Both ends of the cable assembly can accept custom-made Cannon male and female connectors. Each XLR channel has a protective jacket and individual shielding, and is numbered for easy identification.

● High-quality copper conductors ensure pure sound quality and can help reduce noise and static interference during transmission.

● Compatible with all Phenyx Pro wireless systems and audio mixers. It is also compatible with other brand DJ and musical instrument equipment with XLR jacks.

Features

● The multicore snake cable is equipped with balanced XLR 3-pin input or output connectors.

● The multicore snake cable is compact, rugged and super-flexible making it easy to handle and carry.

● Twisted OFC conductor with AL-foil and OFC shielding, the shielding rate is up to 98%Supper flexible and durable PVC Jacket. Excellent electrical performance.

Specifications

● Product Type:Snake cable
● Length: 1m to 20m
● Connector type: Female XLR to male XLR
● CH Conductor:OFC, 20*0.1+PE1.1
● CH Shield:AL-foil+DW 7*0.15 OFC
● CH Jacket:PCV, OD 3.0MM
● Options:4, 6, 8 CH
● Master box Size:42*22*22(L*W*H)cm
