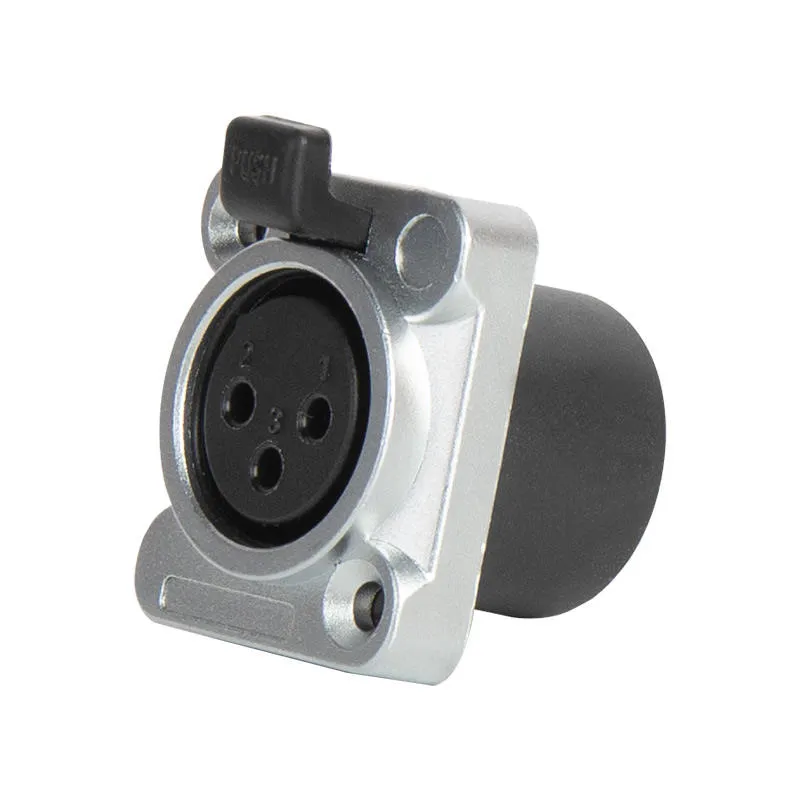

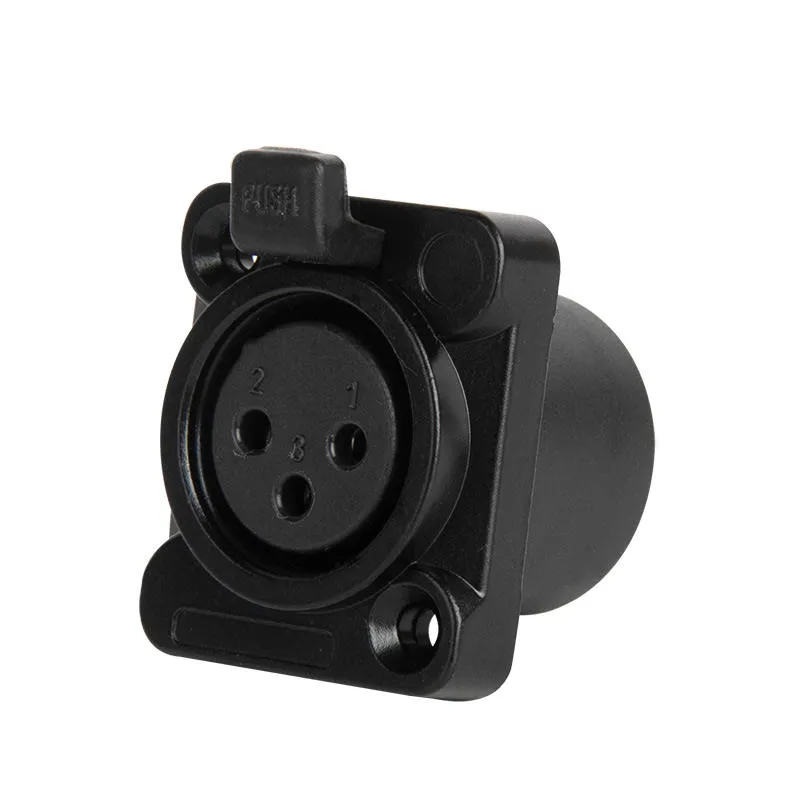

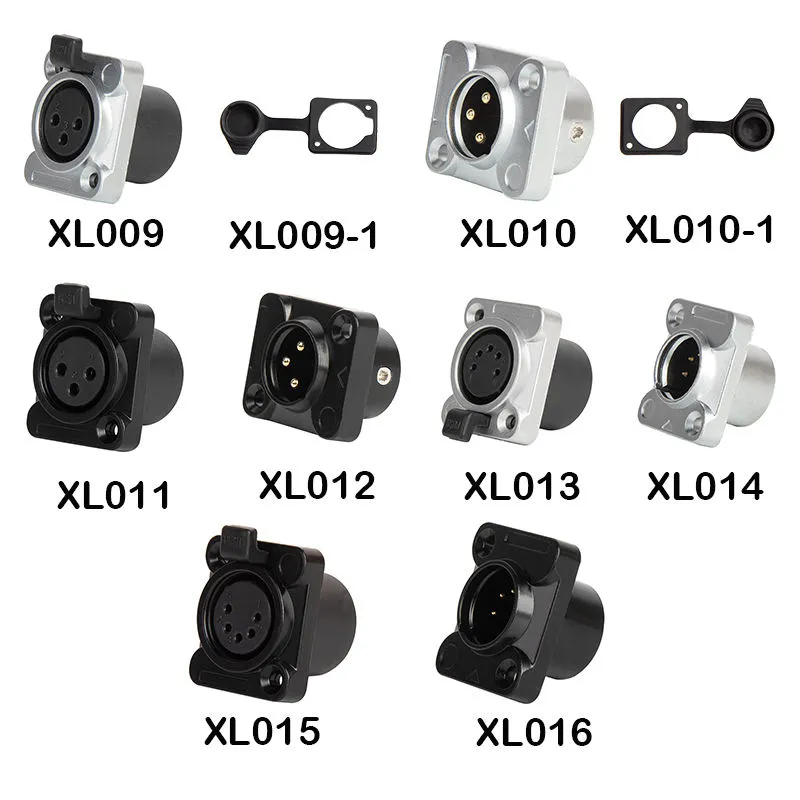

XL009 XLR Panel Mount Connector 3-Pin 5-Pin D-Series Chassis Jack
Description
● XLR panel mount connector with D-series flange fits standard cutouts.
● Heavy-gauge steel shell provides EMI shielding when grounded.
● Pre-threaded inserts accept M3 screws or pop rivets.
● Horizontal PCB tails option for internal board wiring.
Features
● Pre-drilled flange for D-type panel hole
● Steel body with nickel underplate finish

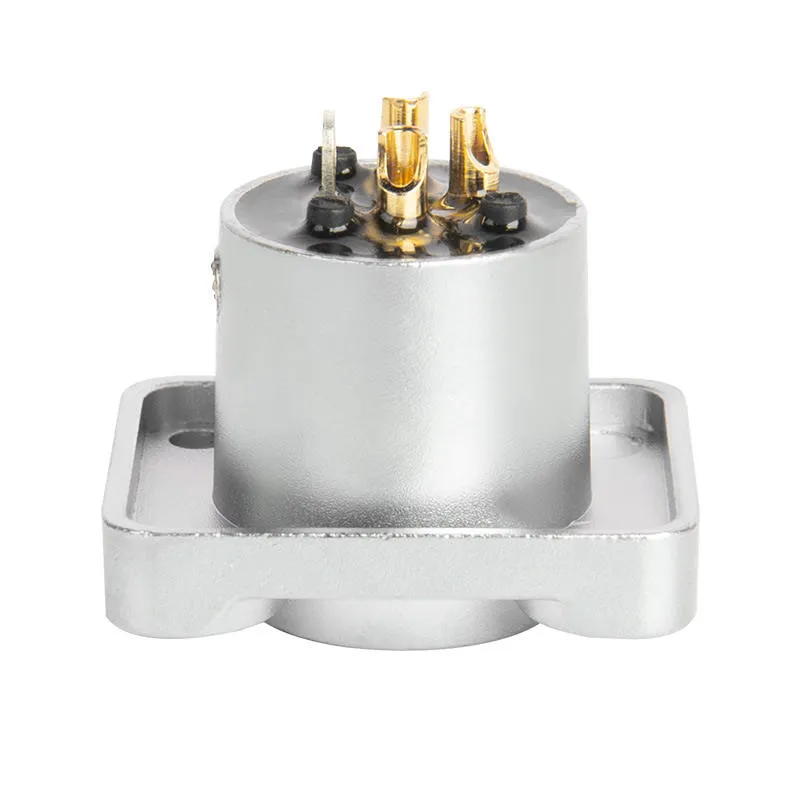

● Solder cups or PCB pins available
● Latch retention matches Neutrik D-series
● Works in 1U or 2U rack panels
● Ground lug for chassis bonding included
Specifications
● Product Type:XLR male female panel
● Style:Rack mount audio jack
● Material:Plastic, metal
● Application:D series XLR connector
● OEM or ODM:Available
FAQ:
Q1: What panel thickness fits the XLR panel mount connector?
A: Flange accepts 1.5mm to 3mm steel or aluminum panels.
Q2: Can I daisy-chain ground on the XLR panel mount connector?
A: Yes, solder to provided ground tab for star grounding.
Q3: Does the XLR panel mount connector require a special punch?
A: No. Standard 24mm D-series knockout tool works fine.
Q4: Is the XLR panel mount connector front or rear mount?
A: Rear mount with screws through flange from front side.
